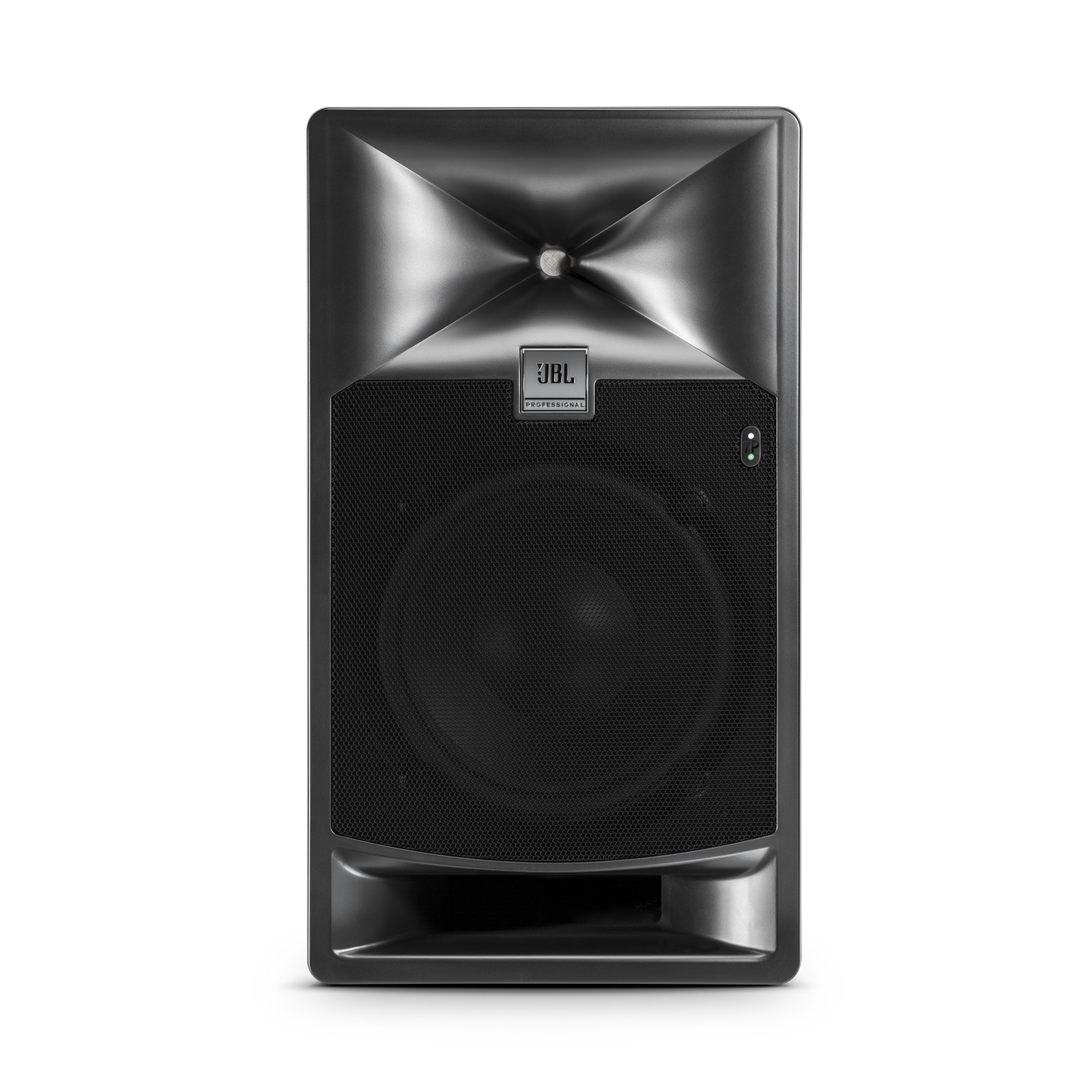

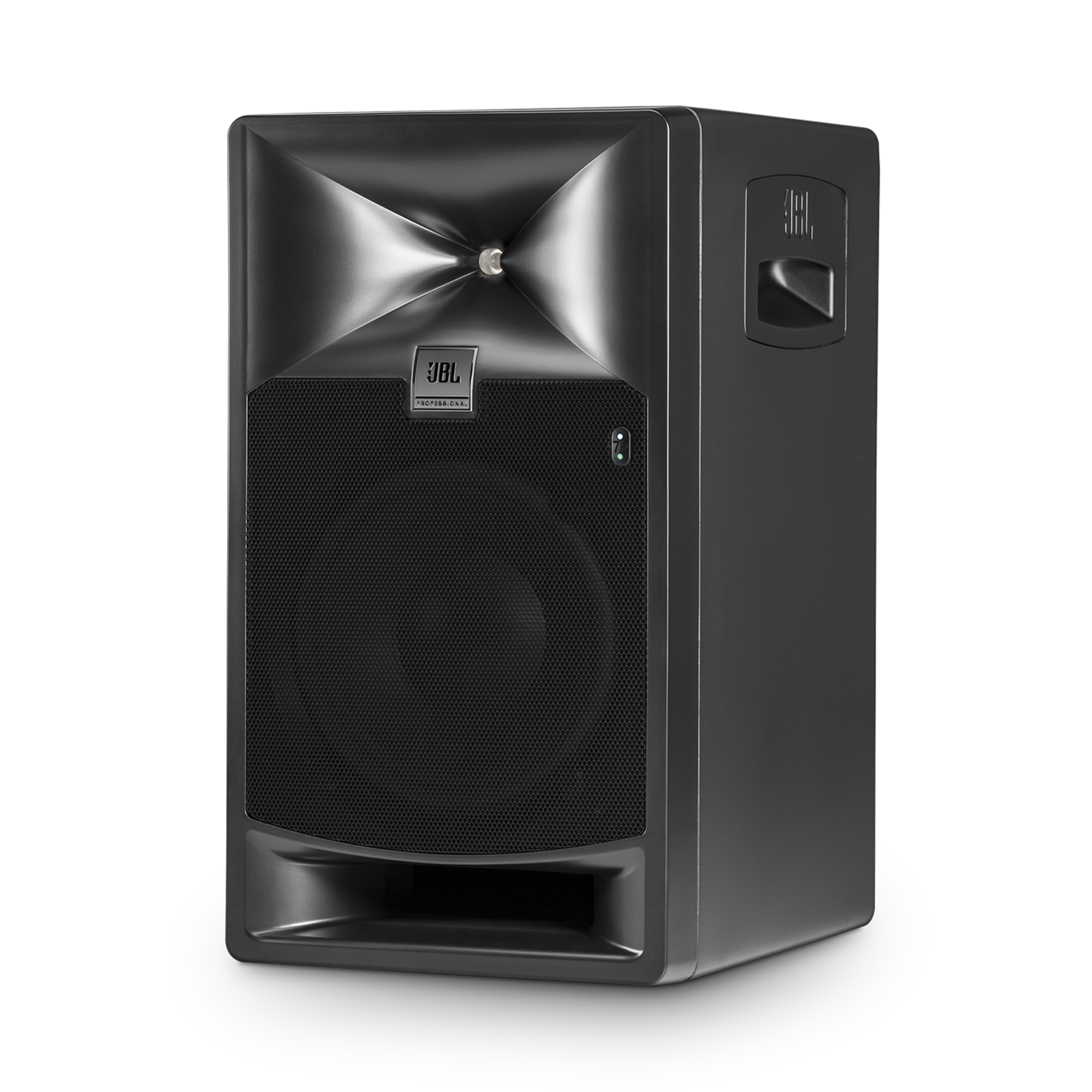

JBL 708P

General Specifications

Frequency Response

-1.5 dB @ 45Hz – 23kHz

Frequency Range

35Hz – 36 kHz

Max SPL

(80 Hz – 20 kHz) >108 dB SPL / 1m

Maximum Peak SPL

(80 Hz – 20 kHz) >114 dB SPL / 1m

HF Driver

2409H

LF Driver

728G

Dividing Network Transition Frequency

1.7 kHz

Input Types

1 x XLR balanced analog audio input ; 1 x XLR AES3 format digital input with 1 x XLR pass-through output ; Digital input will accept sample rates up to 192 kHz

Enclosure

Birch plywood reinforced for mounting

Mounting

Top, bottom and rear mounting points. 4-hole mounting pattern

Dimensions

Height

17.25 in (438 mm)

Width

9.75 in (248 mm)

Depth

11.5 in (292 mm)

Weight

25.2 lb (11.5 kg)
